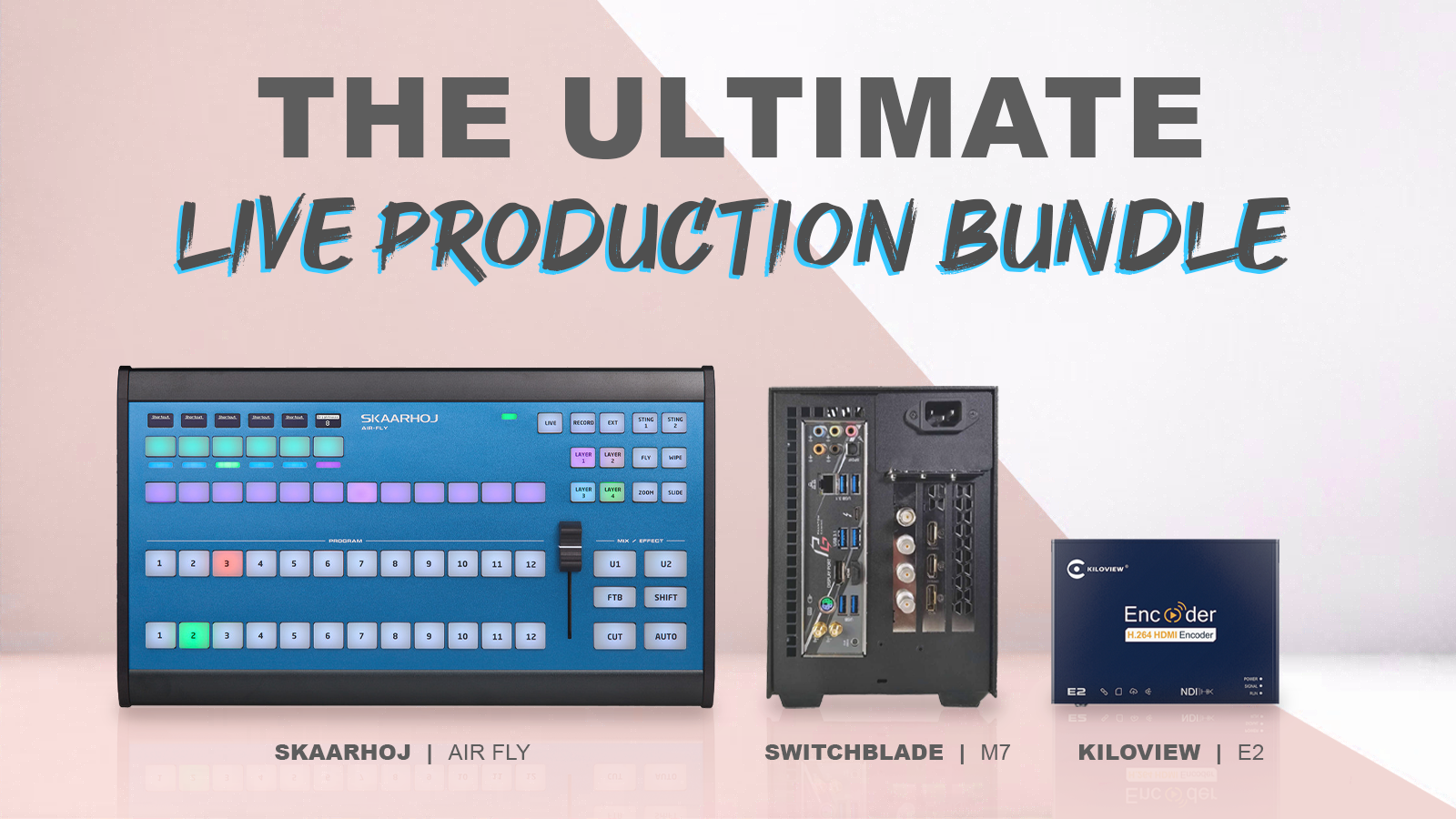

Perfect Live Production Setup for Mixing, Switching, and Streaming

When your students are creating a live production, whether it’s your regular newscast or a special sports game for social media, you need an end-to-end IP solution that’s flexible, portable, and affordable. That’s exactly what you get with the Switchblade M7, Kiloview E2 encoder, and Skaarhoj Air Fly controller. Take a look at how each piece of gear works in the system.

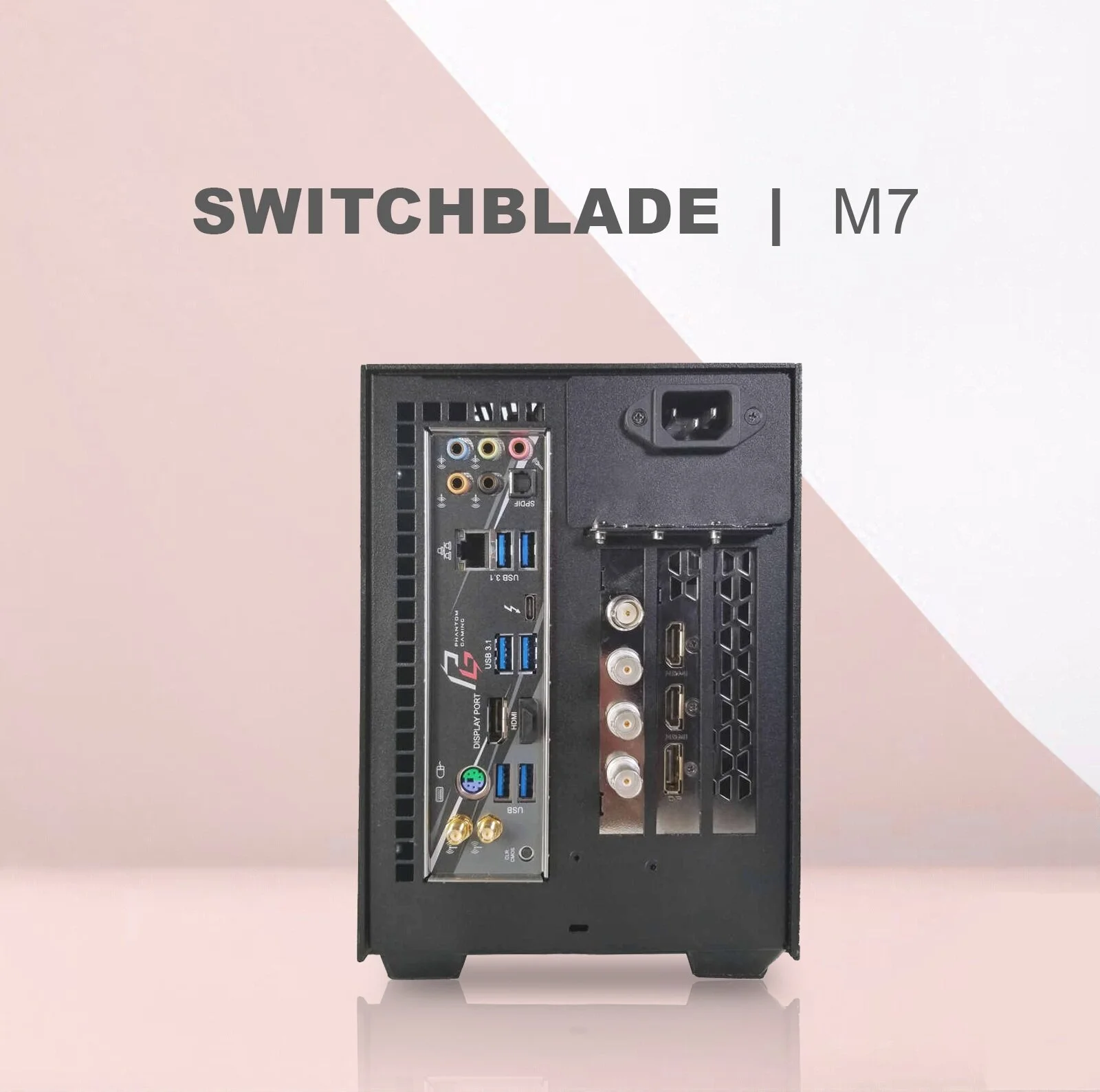

Switchblade M7

Starting at $3,495

The Switchblade M7 is a vMix-based video production solution with customizable SDI, HDMI, and NDI configurations to blend seamlessly into any production. The base unit includes 4 inputs, vMix HD or 4K, 9th Gen Intel CPU, Nvidia GTX GPU, and 250 GB SSD.


Sitting at a size of just 8" x 6" x 13", the Switchblade M7 is easy to pick up and move to different broadcast locations. It packs a lot of power into a little frame. Its I/O panel is full of everything you need for switching, recording, multi-cording, streaming, graphics, virtual sets, remote callers, SRT, and NDI.

The Switchblade M7 is completely customizable, which means a single unit can be used as a switcher, graphics, replay, remote caller system, or all of the above. This is the ideal solution to expose students to a myriad of video production assets in an IP based world without investing in separate equipment for each feature while still enabling multiple seats to operate switching, graphics, and audio.

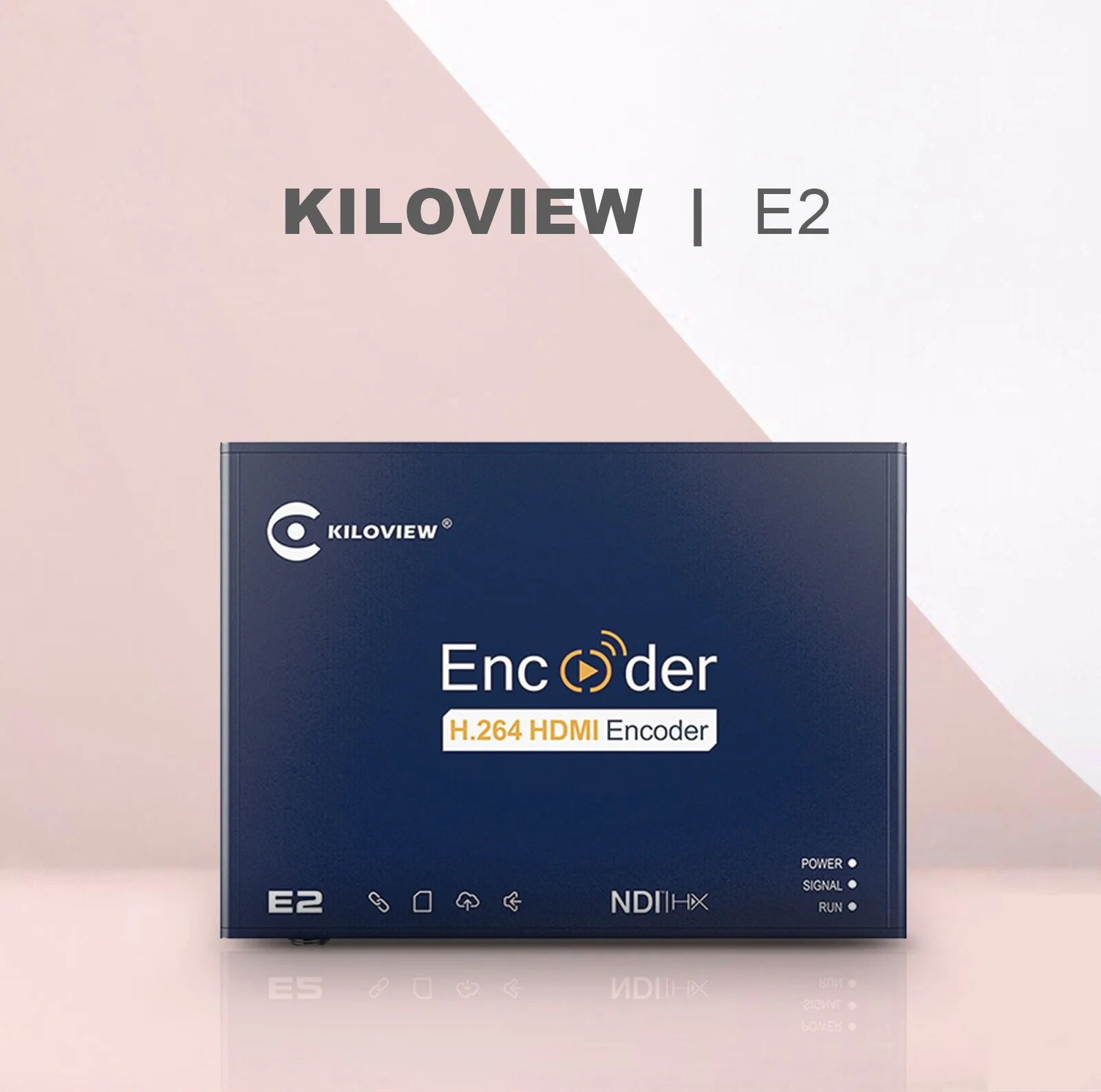

Kiloview E Series

Starting at $341.05

The Kiloview E2 is an HDMI to NDI Hx encoder to use in conjunction with the Switchblade M7 to capture your sources like cameras and computers.


It can output to NDI Hx, SRT, and RTMP at different bit rates allowing you to use it as a contribution encoder to your production, SRT encoder for remote production, or RTMP streaming to Facebook or Youtube as well as several other popular protocols.

It features high bandwidth adaptability, so you can transmit HD, low-latency video even on low bit networks. This means you can take it into a crowded gym, sports stadium, or use a portable router and still stream quality video with no problem.

Also extremely portable, the Kiloview E2 weighs just under a pound. It can send up to 1080p video and full H.264 encoding. It allows for any HDMI input and loop-out, and features USB and SD card support for recording. The E1 is the SDI version with the same feature set.

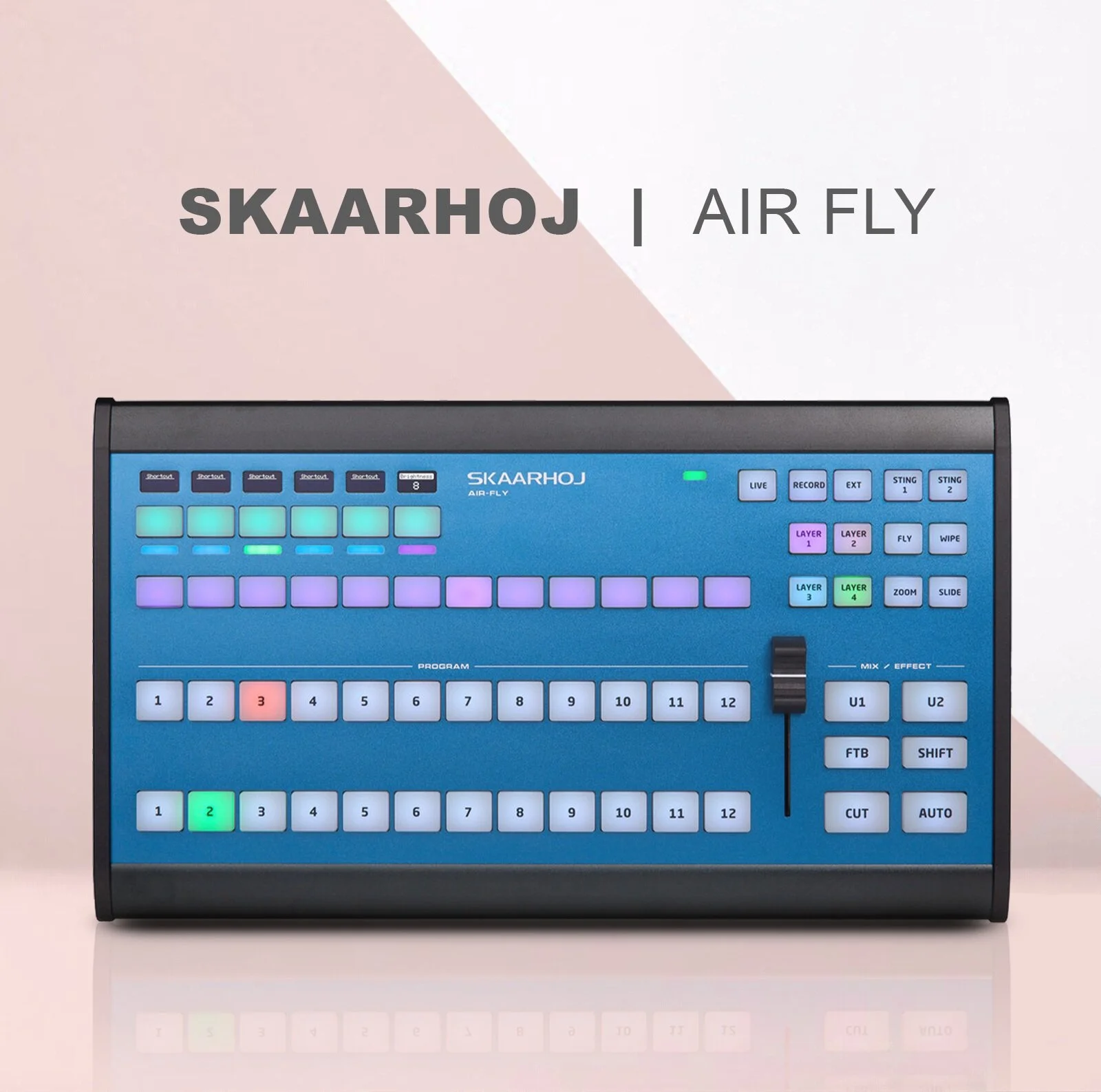

Skaarhoj Air Fly

Starting at $1,499

The Skaarhoj Air Fly is a desktop controller for live switching. It is available in different models compatible with vMix, ATEM, and Tricaster. When used with the Switchblade M7, you can pull up different sources in preview, push them to program, and transition between them.

The Air Fly control surface features:

  • Programmable four-way buttons with OLED displays

  • RGB multi-level metering LEDs

  • Function selector row

  • Keyer/layer section with all essentials

  • 12-key bus rows labeled for switching

  • 61 dimmable RGB backlit elastomer keys

  • Low profile durable transition fader

  • Key labels for vMix, ATEM, or TriCaster

  • Ethernet with PoE (IEEE802.3af)

  • UniSketch OS



If you’re interested in any of this gear for your video production setup, send an email to sales@usbroadcast.co
